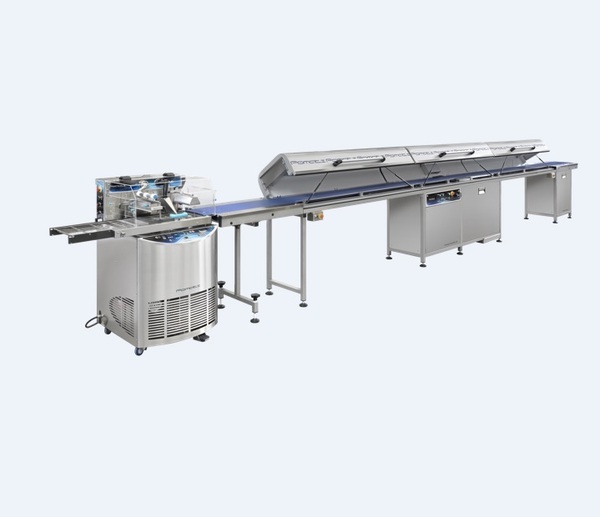

Cooling Tunnel 180/250 4mtr

Artikelcode: pomtunnel180mt4
Cooling Tunnel 180/250 4mtr
  • Cooling Tunnel 180/250 4mtr

Manual control and great processing capacity.

Expressly designed and built to cool products like chocolate Easter eggs, cookies, and covered sweets, POMATI's COOLING TUNNEL is ideal for both artisanal and industrial factories. The warm product is delivered to the tunnel by a conveyor belt, where it is cooled by low-temperature forced air. The refrigeration system and the belt's conveyor are activated by manually handling the control panel.



Technical features

  • Structure                  Entirely made in AISI 304 stainless steel - Coating in thermoinsulated printed material.
  • Conveyor Belt           Conveyor belt in food-grade, crushproof polyurethane - Exit conveyor belt with peeler.
  • Mechanical features   self-aligning rollers with wander-free mechanism -- Automatic, heated gas defrosting
  • Refrigeration unit      Cooling with closed loop air circulation - Refrigerating unit with forced-air cooling system
  • Dimensions              product clearance height 130/290 mm - Conveyor belt width 180/250 - Length of cooling unit, 4 m - Size 570 x 6 m x                                     h 1270 mm
  • Power                      400 Volts –Hz 50–KW 2,4 Tri-phase, 5 poles (customized voltages upon request)
  • Available accessories Tunnel Lighted inspection window, Output sensor for productive stop



Also available:

The tunnel is available in lengths up to 12m and width up to 320mm. Contact us for all the options.
